Custom PPS Parts

Name: Custom PPS Parts
Brand: Yixing Technology
SKU: P-305
Availability: InStock
Rating: 5 (1 reviews)

Item: P-305PEEK and PTFE Molding

MaterialPPS

Mold cavity ：2

ColorNatural

Mold standardChina

INQUIRY EMAIL

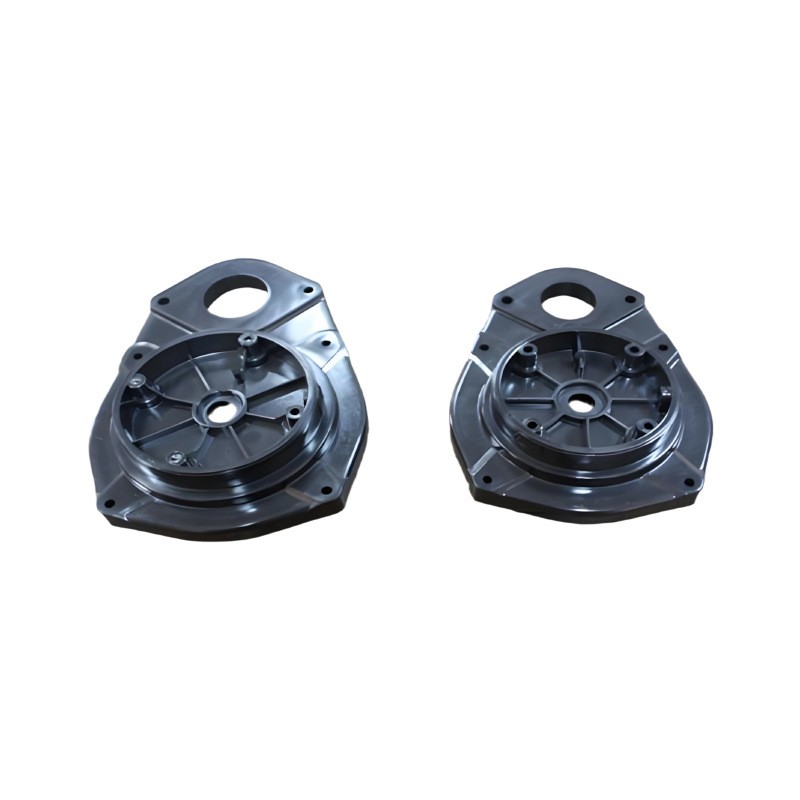

PPS Housing Component Injection Molding

		Material & Design: This part is injection-molded from PPS (polyphenylene sulfide), using a 1-out-of-2 edge-gate design.


Specifications

Parameter	Reference Value / Description
Material	PPS
Dimensions	120mm × 100mm × 35mm (L × W × H)
Weight	85g
Color	Black / Customizable
Tolerance	±0.05mm (for critical mating dimensions) (Non-critical outer dimensions typically ±0.1mm)
Surface Finish	Mold texture MT11010 (VDI 3400) or SPI B-1 (Matte / fine grain, as-molded)
MOQ	100 – 1,000 pcs
Lead Time	Samples: 15–20 days Mass production: 25–35 days (depending on order quantity)
Application	Motor end cap / Pump base / Mechanical structural part
Packing	Anti-static bag + EPE foam + Export carton

How We Injection Molding This PPS Part

When we inject-mold PPS parts, we need to be strict with drying – 130–150°C for 4 to 6 hours, and keep the melt temperature between 310°C and 340°C, mold temperature maintained at 130°C–150°C to ensure proper crystallization and dimensional stability. Injection pressure generally ranges from 80–120 MPa, while holding pressure is about 50–70% of the injection pressure to minimize shrinkage. Injection speed should be medium to high to avoid premature freezing, and back pressure is kept low at 0.3–0.8 MPa. Cooling time usually ranges from 15 seconds for this part. Due to PPS's high crystallinity, we use a hot runner system with precise temperature control for balanced filling in both cavities. Post-mold annealing at 150°C–200°C for 1–2 hours may be applied to relieve internal stress and optimize mechanical properties.

Advantages of PPS (Polyphenylene Sulfide) Material

PPS offers outstanding high-temperature resistance, with a continuous service temperature exceeding 200°C, making it ideal for demanding thermal environments. It provides excellent chemical resistance against acids, bases, and solvents, ensuring long-term durability. Its superior dimensional stability minimizes warpage and shrinkage, allowing for precision parts with tight tolerances. PPS is inherently flame retardant, achieving UL94 V-0 rating without additives. As a high-performance engineering plastic, it is an excellent metal replacement in applications requiring lightweight, corrosion-resistant, and high-strength components.

Typical Application Scenarios

Automotive electronic connector housings
New energy vehicle battery module brackets
Industrial pump and valve components
Electrical insulation parts
LED heat sink housings

Our Workflow

A transparent, step-by-step process from design to delivery.

Stage 1: R&D SupportWe support customer R&D. Create the files or improve the design if needed (UG, SolidWorks, ProE, AutoCAD etc.)

Stage 2: Mold ProcessMold design (DFM report) → check/approve → approved → make mold → produce sample → sample confirmed → check final mold quality ready to export.

Stage 3: Sample ModificationIf the first sample does not satisfy the customer, we can modify the mold to meet customers' requirements.

Stage 4: Sample DeliveryProduce the customer's requested quantity, free shipping.

Stage 5: Final DeliveryDeliver goods by sea or by air; special requirements can be accommodated based on customer demands.
