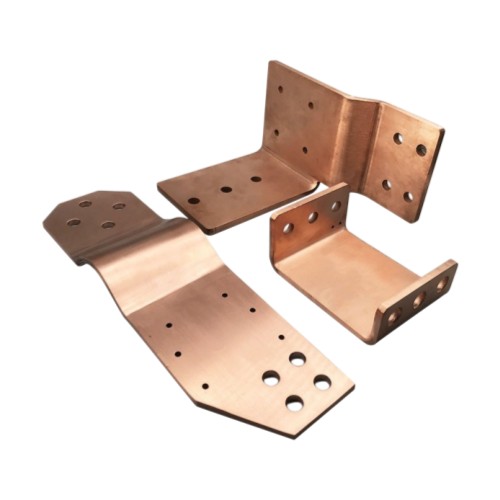

Thick Copper Stamping

Thick Copper Stamping Manufacturing Capability

1. Material Selection & Preparation

Raw Material: Select high-conductivity copper plate (e.g., C11000) or brass based on current-carrying capacity, mechanical strength, and cost requirements.

Material Inspection: Verify thickness uniformity, surface quality, and mechanical properties (hardness, conductivity).

Cutting: The copper plate is cut into blanks of the required size for stamping.

2. The Stamping Process (Single-Station Die or Progressive Die)

For thick-sheet copper, single-station dies are often used because of the high tonnage required and the complexity of the bends.

Step 1 – Blanking & Piercing: The outer profile is cut, and mounting holes are punched. High-tonnage presses are required to shear through thick copper without cracking.

Step 2 – Forming / Bending: The blank is placed into a forming die. A punch and die create U-shapes, Z-shapes, or custom bends with the proper radius. For thick copper, bend radii must be generous to avoid cracking.

Step 3 – Coining / Flattening (Optional): The contact areas may be coined to improve flatness and surface finish for better electrical contact.

Step 4 – Cut-off / Separation: If multiple parts are stamped from one blank, they are separated.

3. Post-Stamping Operations

Deburring: Remove burrs from punched holes and edges to ensure safe handling and optimal electrical contact.

Surface Treatment: Selective plating (tin, nickel, or silver) may be applied to prevent oxidation and improve solderability.

CNC Machining (Optional): For tight-tolerance features or complex geometries, CNC machining may be used after stamping.

Cleaning: Remove stamping oil and debris.

Inspection: Verify dimensions, bend angles, and surface quality.

4. Quality Control (In-Process)

Visual Inspection: Check for cracks, deformation, or incomplete cuts.

Dimensional Check: Micrometers, calipers, and optical comparators verify length, width, hole diameter, and bend angle.

Conductivity Test: Verify electrical conductivity if required.

Plating Thickness Test: XRF verifies plating thickness.

Difficulty 1: Material Sticking & Surface Scratches (Adhesive Wear)

Challenge: Copper has excellent ductility, but it tends to stick to mold surfaces during stamping, leading to burrs, surface scratches, and galling. This is especially problematic for thick plates where friction and pressure are higher.

Root Cause: Copper's softness and high ductility cause it to cold-weld to the die surface; insufficient lubrication; rough tool surface; improper die material.

Countermeasure: Use DC53 mold steel and heat-treat it to improve surface finish and reduce sticking. Apply proper lubrication (copper-specific stamping oil). Polish die surfaces to SPI A1–A2 finish. Consider TiCN or DLC coating for high-wear areas.

Process Tip: DC53 + heat treatment + proper lubrication = reduced sticking and improved surface quality.

Difficulty 2: High Blanking Force & Die Strength

Challenge: For thicker sheets (4mm or more), the blanking force is huge, requiring extremely strong molds. Insufficient die strength can lead to die breakage or deformation.

Root Cause: High shear strength of thick copper; insufficient press tonnage; weak die structure; improper die material.

Countermeasure: Use high-strength die materials (SKD11, DC53, tungsten carbide). Increase die plate thickness and use a reinforced die structure. Ensure press tonnage is sufficient (typically 1.5–2x the calculated blanking force).

Process Tip: High-tonnage press + reinforced die structure + high-strength die materials.

Difficulty 3: Work Hardening & Cracking

Challenge: Thick copper work-hardens after cold working, so multiple stamping operations are needed to avoid cracking. Bending or punching also creates stress concentration, which can lead to edge cracks or distortion.

Root Cause: Copper work-hardens rapidly; residual stress from previous operations; insufficient ductility; sharp corners.

Countermeasure: Perform an annealing treatment before stamping (around 400–600°C) to relieve internal stress and restore ductility. Use multiple forming steps with intermediate annealing if necessary. Increase bend radii and avoid sharp corners.

Process Tip: Annealing at 400–600°C before stamping relieves internal stress and prevents cracking.

Difficulty 4: Clearance Control & Springback

Challenge: Clearance control is critical with thick plates. Too little clearance causes the cutting edge to chip easily; too much clearance produces bad burrs. Additionally, springback is significant, affecting bend angles and hole positioning.

Root Cause: High shear stress; material elasticity; improper clearance; die wear; thermal effects.

Countermeasure: Use FEA simulation to analyze stress distribution and design the punch-die clearance (for copper alloys, a gap of about 4%–9% of the material thickness is usually recommended). Design the mold to compensate for springback. Use over-bending techniques.

Process Tip: FEA simulation + optimized clearance (4%–9% of thickness) + springback compensation mold design.

Difficulty 5: Warpage & Dimensional Drift

Challenge: After stamping, thick copper sheets tend to warp—especially larger parts—and hole positions and overall dimensions can drift, affecting assembly.

Root Cause: Residual stress from shearing and bending; uneven cooling; material thickness variation; insufficient clamping.

Countermeasure: Perform a leveling process after stamping, or do a second fine stamping to keep accuracy within ±0.02mm. Use stress-relief annealing if necessary. Optimize die design with proper clamping and support.

Process Tip: Leveling + fine stamping + stress-relief annealing = dimensional stability within ±0.02mm.

Difficulty 6: Die Wear & Maintenance (Thick Sheet)

Challenge: Thick copper stamping causes rapid die wear due to high shear forces and abrasive copper oxide. Frequent maintenance is required to maintain quality.

Root Cause: High impact force; abrasive copper oxide; insufficient lubrication; improper die material.

Countermeasure: Use tungsten carbide (YG20/YC20C) or high-vanadium tool steel (DC53) for high-wear stations. Apply proper lubrication. Implement a preventive maintenance schedule. Monitor die wear with in-process sensors.

Process Tip: Carbide inserts + preventive maintenance + in-process wear monitoring.

Industries We Serve

Delivering precision thick copper stampings and components across diverse sectors.

New Energy Vehicles (EVs) – Battery pack busbars, cell connectors, and high-voltage distribution modules.

Power Distribution & Switchgear – Electrical busbars, switchgear connectors, and transformer terminals.

Battery Packs & Energy Storage – Energy storage rack connectors and battery interconnects.

High-Voltage Electrical Connectors – High-current lug terminals and copper connectors.

Renewable Energy Systems – Solar and wind power busbars and conductive connections.

Industrial Busbars & Conductors – Thick copper busbars and high-current conductive parts.

Other Electrical Transition Joints – Custom thick copper stampings for specialized applications.

Our Process Flow

DFM Design → Die Manufacturing (CNC / Wire EDM / EDM) → Die Assembly → Trial Run (T1) → Small-Batch Validation → Mass Production

DFM – Review drawings, blank layout, stations, clearance, springback, and thick-plate stress analysis.

Die Manufacturing – CNC, wire EDM, sinker EDM, grinding, heat treatment, coating, inspection.

Die Assembly – Assemble plates, punches, pilots, springs; set clearance for thick plate shearing and feed.

Trial Run (T1) – Mount die, run samples, check dimensions, burr, angle, cracking; adjust.

Small Batch – 500–5,000 pcs; CPK/PPK, tool wear, flatness, plating, PPAP approval.

Mass Production – Stable stamping, SPC, maintenance, selective plating, packaging.

Why Choose Yixing Technology?

Our company excels in meeting these requirements through our advanced process capabilities and expertise:

Ultra-Precision – Critical features (hole diameter, hole pitch, bend angle) must be held within tolerances of less than 0.1 mm for reliable electrical connection and proper fit. Our machining equipment achieves tolerances of ±2 µm, significantly exceeding stamping-die standards.

Crack-Free Bending – Thick copper sheets are prone to cracking during bending. Our molds feature optimized bend radii and proper clearance, enabling clean, crack-free bending for optimal conductivity and structural integrity.

Multi-Process Integration – Blanking, piercing, bending, coining, and cut-off integrated into a single die by our specialist mold designers, turning complex operations into one efficient stamping solution.

High-Tonnage Durability – Thick copper sheets require high tonnage and generate significant impact force. We build molds from high-rigidity, high-toughness materials such as SKD11, DC53, and tungsten carbide alloys, ensuring durability and long service life.

Thick Sheet Expertise – Thick-sheet stamping brings higher shear forces, greater springback, and increased cracking risk. Our engineers have extensive experience designing dies specifically for thick-plate materials, ensuring consistent quality and minimal waste.
