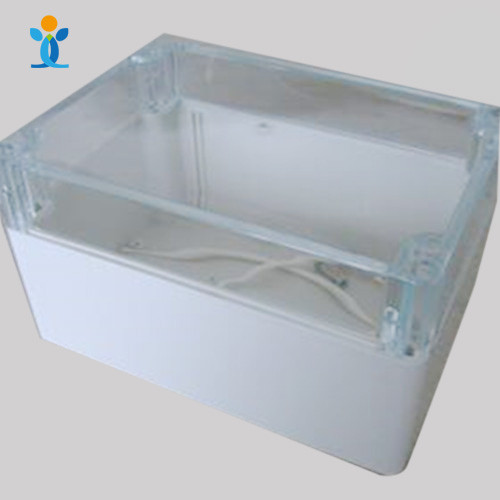

plastic water resistant junction box

Product Item : e-6
Category： custom plastic injection molding parts
size 200X150mm
material:abs,pc
color:trasparent,white,black
water resistant,dust proof
INQUIRY EMAIL

Production details:

Type:	Plastic injection molding	Core surface finish:	polish
Production Material:	ABS/PC	Cavity surface finish:	Glass polish
No of Cavities:	1x 1	Injection System	Cold Runner
Core Material:	P20 with heat treated	Type of gating:	Direct gate
Cavity Material:	P20with heat treated	Cycle time:	50 s
Slider material:	P20 with heat treated	Lead time for Production	10 days
Cooling:	Hot oil	Mold life:	100 000
Place of Origin	China	Packaging:	Air bubble bags and Carton

Product Characters

1. Fireproof V0 grade resin

2. IP65 66 67 grade,water proof and dust proof

3. Operating Temperature:-20℃ to 90℃.

4. High glossy finish

5. Running CPK for critical dimension

6. Low cost prototype mould with low volume production.

What is an IP Rating?

IP rating is also known as Ingress Protection or International Protection ratings which are defined to the international standard of EN 60529 (British BS EN 60529:1992). This standard is used to define the levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies such as tools, dirt and moisture.

What do the two digits in an IP Rating mean?

The rating consists of the letters IP followed by two digits, if a number is replaced by X this indicates that the enclosure is not rated for that specification.

First Digit	Intrusion Protection	Second Digit	Moisture Protection
0	No protection.	0	No protection.
1	Protected against solid objects over 50mm, e.g. accidental touch by hands.	1	Protected against vertically falling drops of water, e.g. condensation.
2	Protected against solid objects over 12mm, e.g. fingers.	2	Protected against direct sprays of water up to 15⁰ from the vertical.
3	Protected against solid objects over 2.5mm, e.g. tools & wires.	3	Protected against direct sprays of water up to 60⁰ from the vertical.
4	Protected against solid objects over 1mm, e.g. wires & nails.	4	Protected against water splashed from all directions, limited ingress permitted.
5	Protected against dust limited ingress, no harmful deposits.	5	Protected against low pressure jets of water from all directions, limited ingress permitted.
6	Totally protected against dust.	6	Protected against strong jets of water, e.g. on ships deck, limited ingress permitted.
